Brand Name : ZKHY
Model Number : ZK-RFID107
Certification : CE
Place of Origin : China
MOQ : 1piece
Price : negotiated price
Payment Terms : T/T, Western Union, MoneyGram,Paypal
Supply Ability : 5000pcs/month
Delivery Time : 2-3 working day
Packaging Details : inner box+export carton/Standard packing or to be customized for big orders.
Application : Inventory Management
Dimension : 160*110*40MM
Reading Distance : 80CM
Support Interface : RS232 and Wiegand, USB interface
Net Weight : 280g
Protocol : CLASS1,G2,ISO18000-6B/6C
Frequency : 865~868MHz/902~928MHz frequency band
RF Power : up to 30dbm

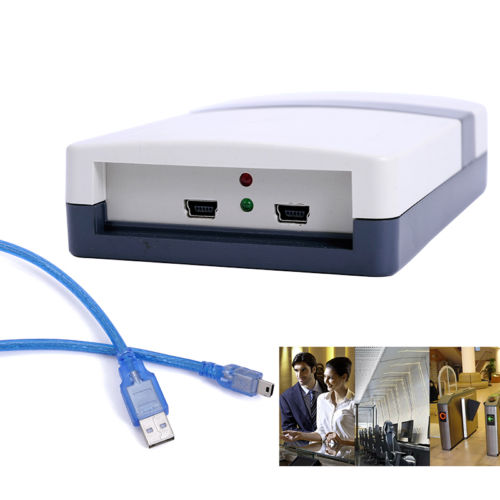

Mobile Free Sdk Interactive Usb Rfid Desktop Reader For Jewelry Management
Product Applications
Item can be widely applied in many areas,such as:
1.Logistics& warehouse management: goods flow management,warehouse management, etc.
2.Intelligent parking management: parking lot management and automatic charge(E-Toll).
3.Production line management: fixed-point identification in production process.
4.Product counterfeit inspection: Using tag’s memory write-protect function to identify true-false of products.
5.Other fields: Library management, school management, asset management, access control, etc.
General Description
ZK-RFID107 is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.
FEATURES
1.Self-intellectual property;
2.Support UHF EPC Gen2(ISO18000-6C),ISO18000-6B protocol tags;
3.Advanced tag processing algorithm, high identification rate;
4.Built-in antenna with Read effective distance up to 1000mm;
5.Low power dissipation design;
6.USB interface to get power from computer
7.Provide DLL and Demonstration Software Source code to facilitate further development;
CHARACTERISTICS
Absolute Maximum Rating
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 5 | V |
Operating Temp. | TOPR | -15~+55 | ℃ |
Storage Temp. | TSTR | -20~+60 | ℃ |
Electrical and Mechanical Specification
Under TA=25C,VCC=+9V unless specified
ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
Power Supply | VCC | 3.3 | 5 | 5.5 | V |
Current Dissipation | IC | 90 | 150 | mA | |
Frequency | FREQ | 902 | 928 | MHz | |
Effective Distance* | Dis | 0 | 1000 | 1200 | mm |
Effective distance depends on protocol, tag and environment.

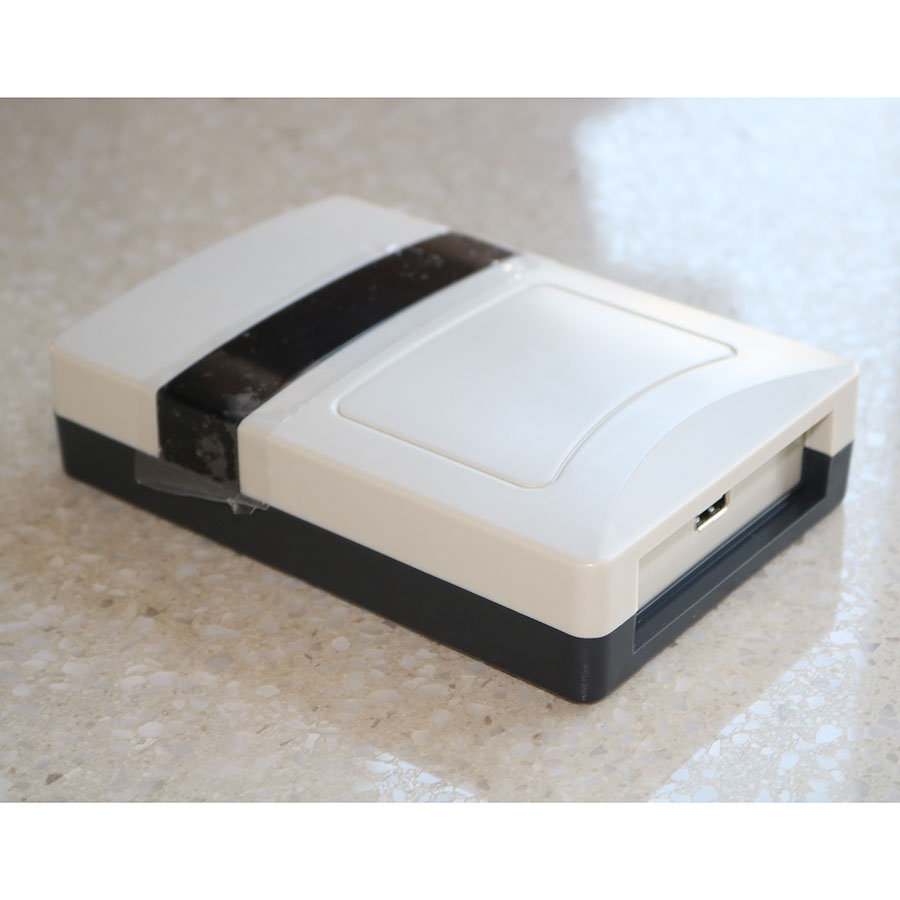

Mobile Free Sdk Interactive Usb Rfid Desktop Reader For Jewelry Management Images |
