High Identification Rate High Range RFID Reader Fast Tag Read

Name: High Identification Rate High Range RFID Reader Fast Tag Read
Brand: ZKHY
Price: 1 USD

China High Identification Rate High Range RFID Reader Fast Tag Read wholesale

Brand Name : ZKHY

Model Number : ZK-RFID102IP

Place of Origin : China (mainland)

MOQ : 1

Payment Terms : Western Union, T/T，Paypal

Packaging Details : Carton packing

Protocol : ISO18000-6B, EPC Class 1 Gen 2(ISO18000-6C)

Protection Grade : IP54

Work Frequency : Standard ISM 865-868MHz, 902~928MHz ( frequency can be customized)

Frequency Hopping : FHSS

Power Output : 0-30dBm(adjustable)

Antenna : Built-in 8dBi circular polarization antenna

Beam Width : 60°

Interface : RS232, RS485, wiegand 26/34 (TCP/IP,Wifi can be customized)

Operating Mode : Answer,Active,Trigger

Read Range : 0-10m

Input Power : 100-240V,DC+9V (Power Adapter)

Power Consumption : 1W

Dimension : 445*445*65mm

N.W : 5000g

Storage Temp. : -25°C~+80°C

Operation Temp. : -25°C~+70°C

Contact Now

Passive Long distance UHF RFID Integrated Reader from RFID manufacturer with 10 years of experience

ZK-RFID102IP is a high perfomance intergrated UHF rfid reader. It has rich communication interfaces like RS232, RS485, Wiegand,RJ45. It is widely used in smart parking, auto access control, auto wieghing system.

Specification:

Protocol	ISO18000-6B, EPC Class 1 Gen 2(ISO18000-6C)
Protection Grade	IP54
Work Frequency	Standard ISM 865-868MHz, 902~928MHz ( frequency can be customized)
Frequency Hopping	FHSS
Power Output	0-30dBm(adjustable)
Antenna	Built-in 12dBi circular polarization antenna
Beam Width	60°
Interface	RS232, RS485, wiegand 26/34 (TCP/IP,Wifi can be customized)
Operating Mode	Answer,Active,Trigger
Read Range	0-10m
Reading Clue	Buzzer
Input Power	100-240V,DC+9V (Power Adapter)
Power Consumption	1W
Dimension	44544565mm
N.W	5000g
Operation Temp.	-25°C~+70°C
Storage Temp.	-25°C~+80°C
Humidity	80%
Additional services	Provide Demonstration software and SDK for further development

Competitive Advantage:

IP54 Grade, be able to work under harsh enviroment.
With fast tag read/write operation with high identification rate.
High reliability.

Application :

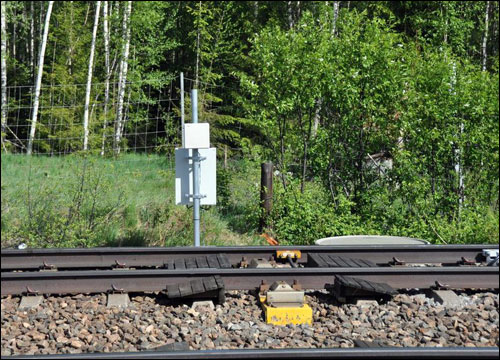

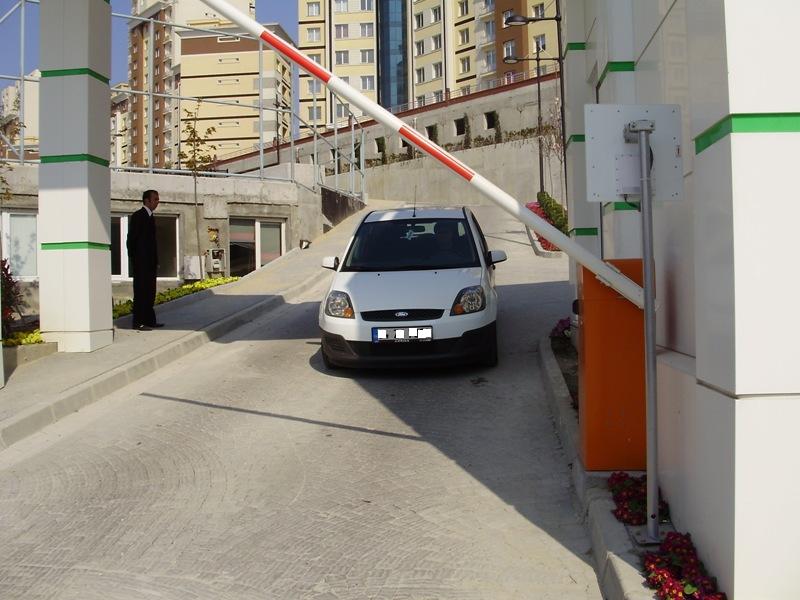

Car parking system, fleet management, railway tracking
