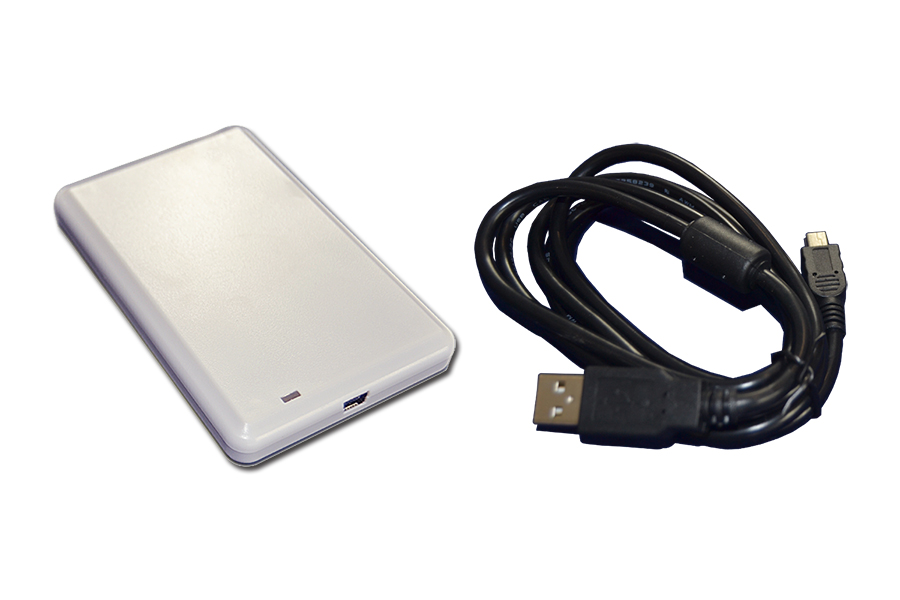

White usb keyboard emulator RFID Desktop Reader writer chip card encoder
ZK-RFID107 is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.
FEATURES
l Self-intellectual property;
l Support ISO18000-6C (EPC C1G2),ISO18000-6B protocol tag;
l 902~928MHz frequency band(frequency customization optional);
l FHSS or Fix Frequency transmission;
l RF output power up to 30dbm(adjustable);
l Built-in wideband antenna with effect distance up to 500mm*;
l Support auto-running and interactive work mode;
l Low power dissipation with single +9V DC power supply;
l SupportRS232 and Wiegand interface;
l Output format and parameters configurable;
l Provide SDK and demo software to facilitate further development.
INTERFACE
| DB9 Male |
| Pin | Symbol | Comment |
| 1 | NC | Reserved |
| 2 | TXD | TXD of RS232 |
| 3 | RXD | RXD of RS232 |
| 4 | NC | Reserved |
| 5 | GND | GND |
| 6 | WD0 | Wiegand data0 |
| 7 | NC | Reserved |
| 8 | WD1 | Wiegand data1 |
| 9 | GND | GND |
CHARACTERISTICS
l Absolute Maximum Rating
| ITEM | SYMBOL | VALUE | UNIT |
| Power Supply | VCC | 15 | V |
| Operating Temp. | TOPR | -10~+60 | ℃ |
| Storage Temp. | TSTR | -25~+80 | ℃ |
l Electrical and Mechanical Specification
Under TA=25℃,VCC=+9V unless specified
| ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
| Power Supply | VCC | 6 | 9 | 12 | V |
| Current Dissipation | IC | | 400 | 700 | mA |
| Frequency | FREQ | 902 | | 928 | MHz |
| Effective Distance* | Dis | 0 | 100 | 500 | mm |
* Effective distance depends on protocol, tag and environment.
