UHF RFID Desktop Reader Writer 860-920mhz 80CM Reading Distance USB connector free SDK and Demo
UHF RFID Desktop Reader Description
The UHF RFID Fixed Reader is an rfid device working in the UHF band, generally operating in the 840-960m Hz band (different standards exist in different regions of the world).Uhf systems transmit energy through electromagnetic fields.The storage information in uhf RFID tags can be read by electromagnetic wave reflection coupling, which has the advantages of remote reading and group reading. Compared with active 2.4g devices, passive uhf RFID tags do not need batteries, and the cost is low. When combined with uhf readers, project costs can be greatly reduced.Can be used in vehicle management, library management, storage management, logistics management, retail management, etc.
UHF RFID Desktop Reader Specifications:
| Operating frequency | ISM 902MHz~928MHz,available to customize 860~960Mhz |
| Support Protocol | ISO18000-6B/ISO18000-6C/EPC Class1G2 |
| Working Mode | FHSS or working mode of fixed frequency pulse transmitting, set by software. |
| Transmit Power | 0dbm~30dbm(adjust by software) |
| Reading range | 0.8M MAX (Depends on reading condition and tags) |
| Writing range | 0.2M MAX (Depends on reading condition and tags) |
| Interface | USB virtual keyboard/ USB virtual serial port |
| Antenna | Built-in, 2dbi circularly polarized antenna |
| Power supply | USB,5.5V DC |
| Dimension | 130mm×85mm×12mm |
| Weight | 100g |
| Working Temp | -20℃~+55℃ |
| Interface | USB plus and play |
| Demo | Csharp/Delphi |

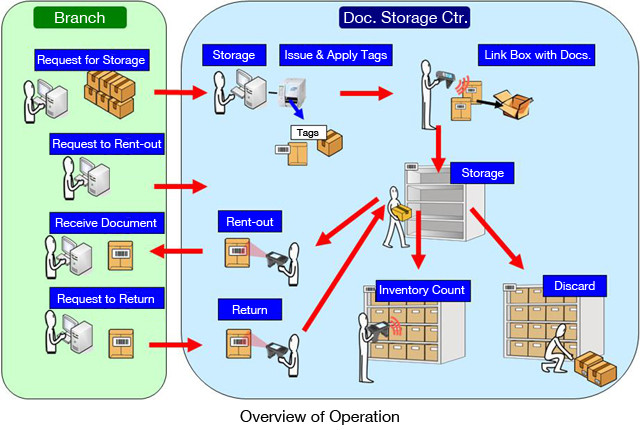

Applications of Desktop uhf rfid cared reader usb connector
Identification
Access control, PC Access
Offline Ticketing
Customizing cards
Payment
Asset management
Logistics management

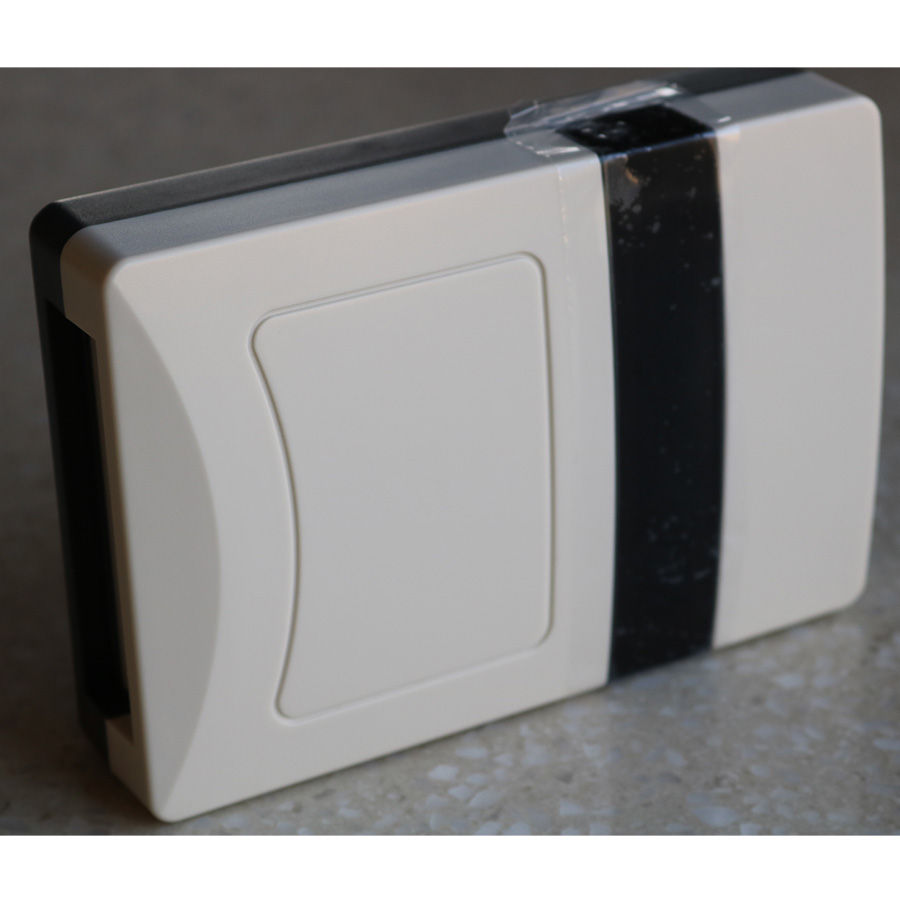

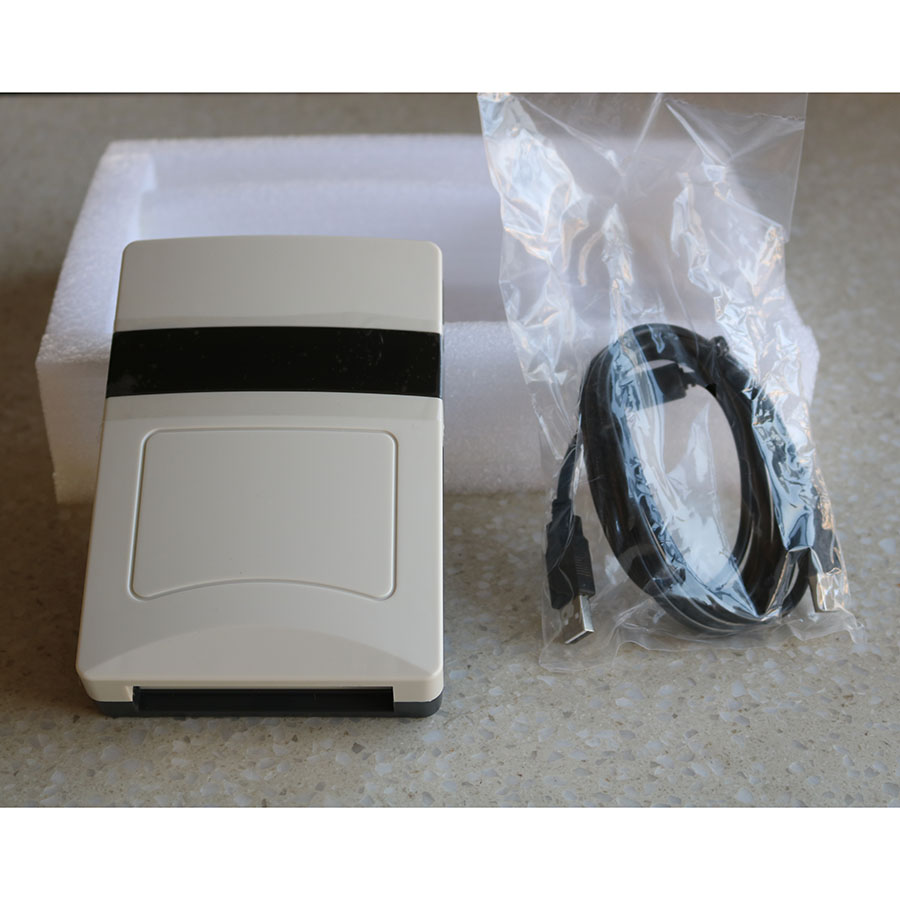

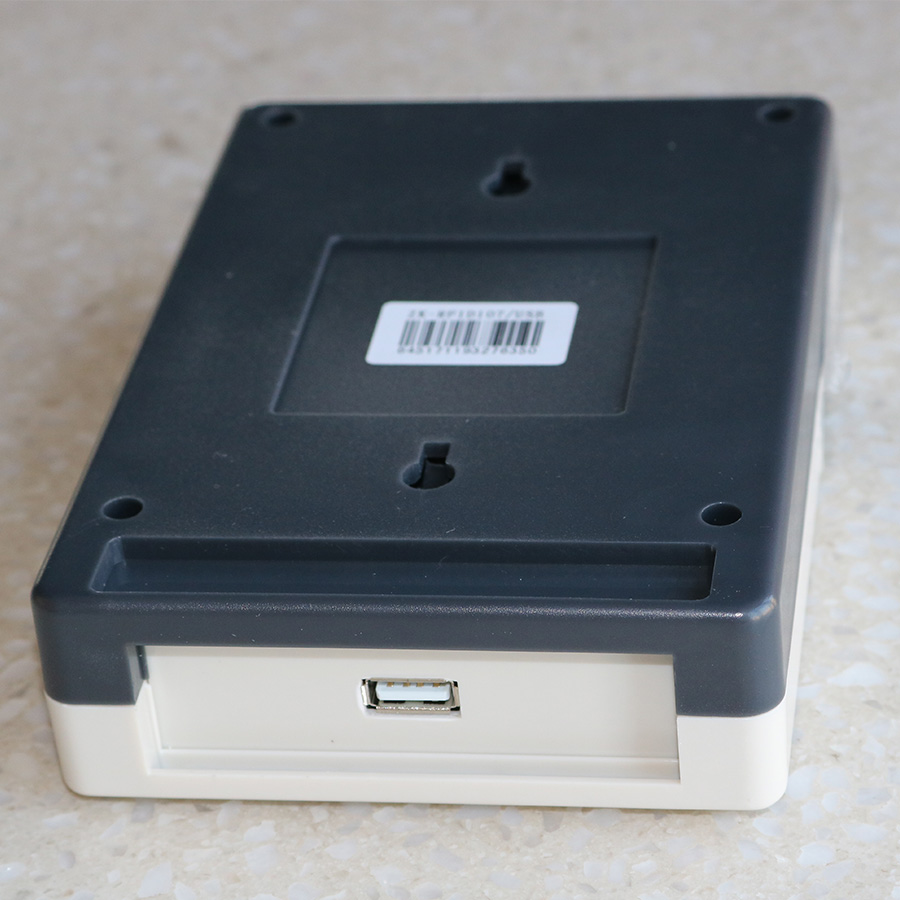

Desktop UHF RFID Card Reader Writer Pictures
Samples are available to order!
For some normal appearance and interface,we always have in stock.
Feel free to contact us to send your inquiry.

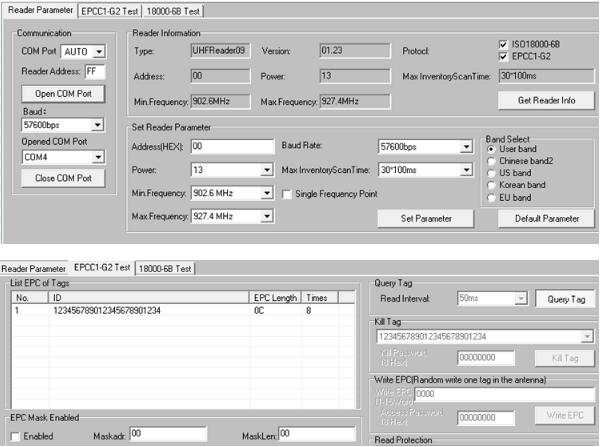

UHF RFID Desktop Reader Demo
FAQ
1. Are you a factory?
Yes, we’re a factory that manufactured UHF RFID Readers and Antenna since 2010. Warmly welcome to visit our factory!
2. We are not an expert buyer in your technology, what information do you need from us to quote ?
Dear friend, please inform us clearly you use reader in what working environment of project, what goal do you want to achieve, we would propose you the suitable product in good price.
Our Service
1, 12 months warranty
2, ODM/OEM customization services according to your needs.
3, Completely Free SDK and technical support for you.
4, Fast Delivery Time: 1-3 working days for sample order; 5-15 working days for bulk order
5, Fast Response: Reply inquiries within 24 hours
Using Note
The UHF RFID reader use radio influence technology, avoid to approach the metal as far as possible when using it. The radio wave will be affected by metal and reading distance will be shorted when reader approach to metal.The UHF RFID reader installation position should be far away from motor and transformer etc, to reduce the impact on reader.
Product Tags:
|
|
UHF RFID Desktop Reader Writer 860-920mhz 80CM Reading Distance USB connector free SDK and Demo Images
|
